SITE7X

The Legalities

1. Safety Instructions

2. Warranty

Click here for zzoota’s warranty policy, or to make a claim.

3. Site7X Introduction

3.1 Product Highlights

• Qualcomm Cortex-A53 64-Bit Quad-Core processor 2.0 GHz

• Android 12 Operation System

• IP67 rating

• WIFI, Bluetooth, LTE, GNSS and 5000mAh rechargeable battery

• 7” IPS Display, physical 1280x800 resolution, 800cd/m2, Touch Multi-touch

• Portable with Docking-Station

• Fully Rugged for Transportation/Warehousing/Industrial Control

3.2 Product Overview

3.3 Tablet Specifications

3.4 OBD-II Docking Station Specifications

3.5 J1939 Docking Station Specifications

4. Getting started

4.1 Charging the Site7X

Due to shipment regulations the battery is partially drained when the device is delivered to you. Be sure to fully charge the battery when you are charging it for the first time.

Tips:
Always use DC charging if available. The device uses a unique patented power supply design that uses the power supplied by DC input or USB type-C input first, rather than the power which store in the internal battery. This enhanced design extends the life of the battery and improves safety.

1. The device is charging when mounted into the optional docking station and power delivered via the DC port.

2. The device can be charged by a 5V 2A input through the docking station and via a USB type-C cable directly into the device.

Warning
Please ensure that the input voltage of the DC interface is within the range of 8V-36V or use the optional 12V adapter. If the input voltage of the DC is outside this range the tablet may be unable to charge or damaged and will void the warranty.

4.2 Power and Sleep

This chapter describes how to power on/off the device, and put the device into sleep mode.

Proper operation of powering on/off the device will be beneficial to ensure the stability of the system. The device status is indicated by the colour of the indicator light and is described in the following table.

Table 2.1.1 Indicator colour and device status table

Power on

1. Hold down the red power button for more than 2 seconds until the zzoota logo is displayed. In approximately 40 seconds the operating system will load. The indicator light will be on.

2. Power on by connecting ACC, see the details in Chapter 3.3 ‘Using ACC’.

3. Power consumption during activation:5W Typical Value Power off

4. Hold down the red power button for more than 2 seconds until the shutdown box pop-up appears, then click the ‘POWER OFF’ option.

5. Power off by ACC, see the details in the Chapter 3.3 ‘Using ACC’.

6. In order to reduce the standby power consumption the red light is on during charging and will turn off when fully charged.

7. The energy consumption during powering of (with docking station) is approximately 100mW.

Sleep Mode

1. The auto sleep time can be set in the device settings

2. Short press red power button to activate device sleep mode

3. Short press red power button to wake the device

4. Sleep by ACC, see the details in Chapter 3.3 ‘Using ACC’

5. Wake by ACC, see the details in Chapter 3.3 Using ACC’

6. The average power consumption in sleep mode is approximately 1W

4.3 SIM Card

When you receive your Site7X, it will come with a SIM card preinstalled for your convenience, unless otherwise discussed with zzoota.

If you need to change the SIM card for any reason, follow the below steps:

1. Power off the device

2. Locate the SIM card slot on the side of the device

3. Insert card as indicated and fully insert until it locks into place

4. Lock the interface cover

Note: If the supplied SIM card is removed and inserted into another device, it will deactivate. Reactivating the SIM card will require the completion of a Support Ticket, and may incur a fee.

Pull the buckle up as shown in Fig. 4.2 below.

Push the tablet back so that it attaches to the docking station via the snap joint, as shown in Fig. 4.3 below.

Release and finish the installation as shown in Fig. 4.4 below.

5.2 Undocking the Site7X

Stretch the buckle upwards to release it from the device, as shown in Fig. 4.5 below.

Remove the device as shown in Fig. 4.6 below.

6. Applications

6.1 zzoota Application

Your Site7X will come with the custom zzoota application preinstalled. Depending on the version purchased, this will be the OBD-II or J1939 application.
This application gathers all the data from the tablet to send back to Link.
This smart “launch on power on” application is set and forget – once your tablet is turned on, you can exit the app and move on.

6.2 Heavy Vehicle Navigation

Sygic, zzoota’s heavy vehicle navigation application will come preinstalled on your tablet. If you’ve purchased a license with your device, this will be activated and ready to go when your tablet arrives.
If you wish to activate a license after purchase, contact zzoota through our Support Ticket Portal.

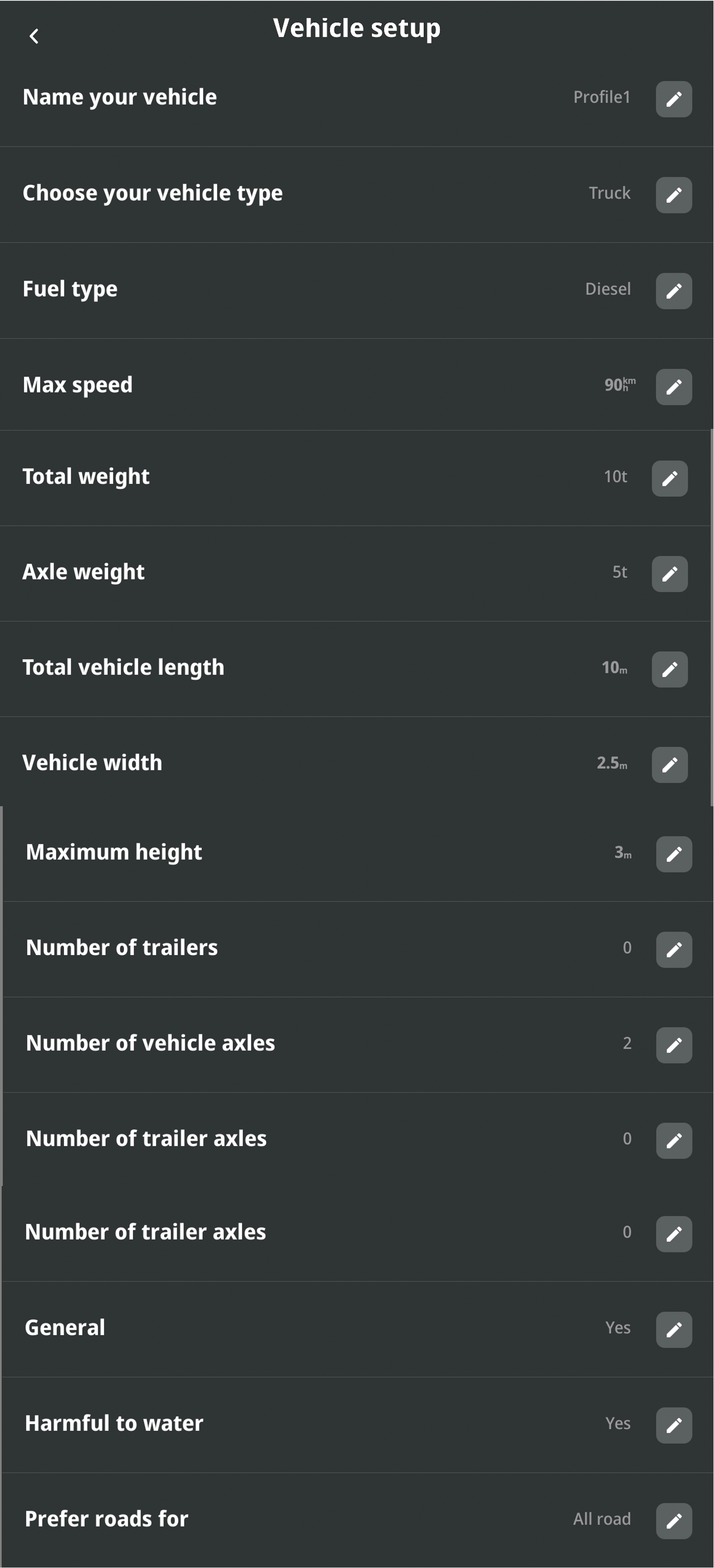

To set up the navigation for your asset, follow the instructions below:

6.3 Pre-Start Checklist

The Browser application on your new tablet will house your Pre-Start Checklist.

6.4 Custom Applications

Any custom applications you’ve selected when purchasing your tablet will also come preinstalled – if you need to add any after purchase, contact us through our Support Ticket Portal.
